5Q MODEL and 5G MODEL

MODEL 60 G

HIGH-PRESSURE GREASE PUMP – OIL & GAS

1000 bar / 15000 psi

Our high pressure grease pumps have a pneumatic pump and press system, which allows heavy greases and sealants to be operated in adverse weather conditions with working pressures that reach 15,000 PSI – 1000 bar. Ideal for valve maintenance in pipelines of gas, oil, mining industry, etc.

CHARACTERISTICS

• Ratio: 100:1
• lnlet pressure: 10 [bar]
• Air consumption: 190 [I/min] at 6 [bar]
• Air inlet connection: 1 /4″ [BSP] G
• Grease outlet connection: 1/4″ [BSP] G
• Noise: 79 [dB]
• Suitable for NLGI grade greases No. 1, 2 and 3; in 4.53 kg (10 lb) aluminum cans and 18.9 kg (5 gallon) plastic pails.

MODELS

• MODEL 5Q: Equipment designed for 5-quart aluminum buckets. Equivalent to 10 pounds or 4.5 kg of grease – With a pneumatic grease press system. Equipment weight (without grease): 29.9 kg
• MODEL 5G: Equipment designed for 5 gallon plastic containers. Equivalent to 18 kg buckets of grease – With a pneumatic grease press system. Equipment weight (without grease): 36.5 kg
• MODEL 60G: Equipment designed for 55 gallon drums. Equivalent to 200 kg drums of grease – With follower grease press and with pneumatic follower (optional). Equipment weight (without grease): 20 kg

BENEFITS AND ACCESSORIES

• Handlebar with pressure gauge and Z swivel joint: allows grip and manipulation of the hose and applicator valve plug, visualizing the pressure developed.
• Needle valve: allows easy open-close the greasing of the equipment
• Purge valve: allows the back pressure of the line to be released after greasing.
• Quick hose coupling: ensures ease of transporting the equipment. It is also used for initial purging of the equipment.
• Internal air distributor: only one air inlet for all functions.
• Push button for demolding the grease follower.
• Fully enclosed equipment guaranteeing cleanliness of grease.
• Graduated rod to visualize grease consumption

¡IMMEDIATE REPLACEMENTS AND AFTER-SALES SERVICE!

EFFICIENT

MOBILE

CLEAN

USE VIDEO

Our high-flow, high-pressure pneumatic pump allows large flow movements of grease at considerable pressures. Ideal for greasing manifold distribution systems used in fracture stacks, christmas trees, or installations with multiple valves.

CHARACTERISTICS

• Ratio: 110:1
• Flow rate: 3.5 [kg/min]
• Inlet pressure: 1O [bar]
• Air consumption: 2.90 [m3/min]
• Air inlet connection: F 1/2″ [NPT]
• Grease outlet connection: F 1 /2″ [NPT] – Opcional 9/16 [AU]
• Noise: 79 [dB]
• lmmersion diameter 50 [mm]
• lmmersion length 940 [mm]
• Weight: 27 [kg]

ACCESORIES

• Top
• Fat press

APPLICATION
Designed for medium and high viscosity greases.

Equipment designed for JIT Lubrication pneumatic pumps, models: 60:1, 70:1, 100:1, 110:1. Ideal for viscous fats.

EQUIPPED WITH

• Grease press
• Pneumatic cylinders
• Command valve
• Relief valve
• Pressure gauge
• Regulator and lubricator filter

Equipment designed for JIT Lubrication pneumatic pumps, models: 60:1, 70:1, 100:1, 110:1. Ideal for viscous fats.

EQUIPPED WITH

• Grease press
• Pneumatic cylinders
• Command valve
• Relief valve
• Pressure gauge
• Regulator and lubricator filter

For JIT lubrication pneumatic grease guns, models 60:1, 70:1, 100:1, 110:1

The JIT Lubrication monitoring and greasing control system allows for the setting of greasing variables, either by pressure or grease flow rate. Based on these user-set values, the system will monitor using flow and pressure sensors until the entered value is reached, cutting off the pneumatic supply to the pump being used. The greasing variables (pressure, flow rate, and temperature) will accompany data specific to the valve being greased and the environment. User data, ID, and valve models can be input via its HMI touchscreen. This information will generate a report that will be printed after each greasing, and also stored in the internal memory for later download via USB or Ethernet cable for manipulation.

Features

Included sensors:

• Grease flow rate
• Grease flow rate (Note: “caudal de grasa” appears twice in the original)
• Grease pressure
• Ambient temperature- environmental temperature

Actuators:

• 24V solenoid valve
• Interface screen

Power supply:

• 24 VDC
• 220 VAC

Interface:

• Greasing date and time
• Maximum pressure – maximum grease quantity
• Operator
• Valve coding

Communication:

• Ethernet and USB

BENEFITS

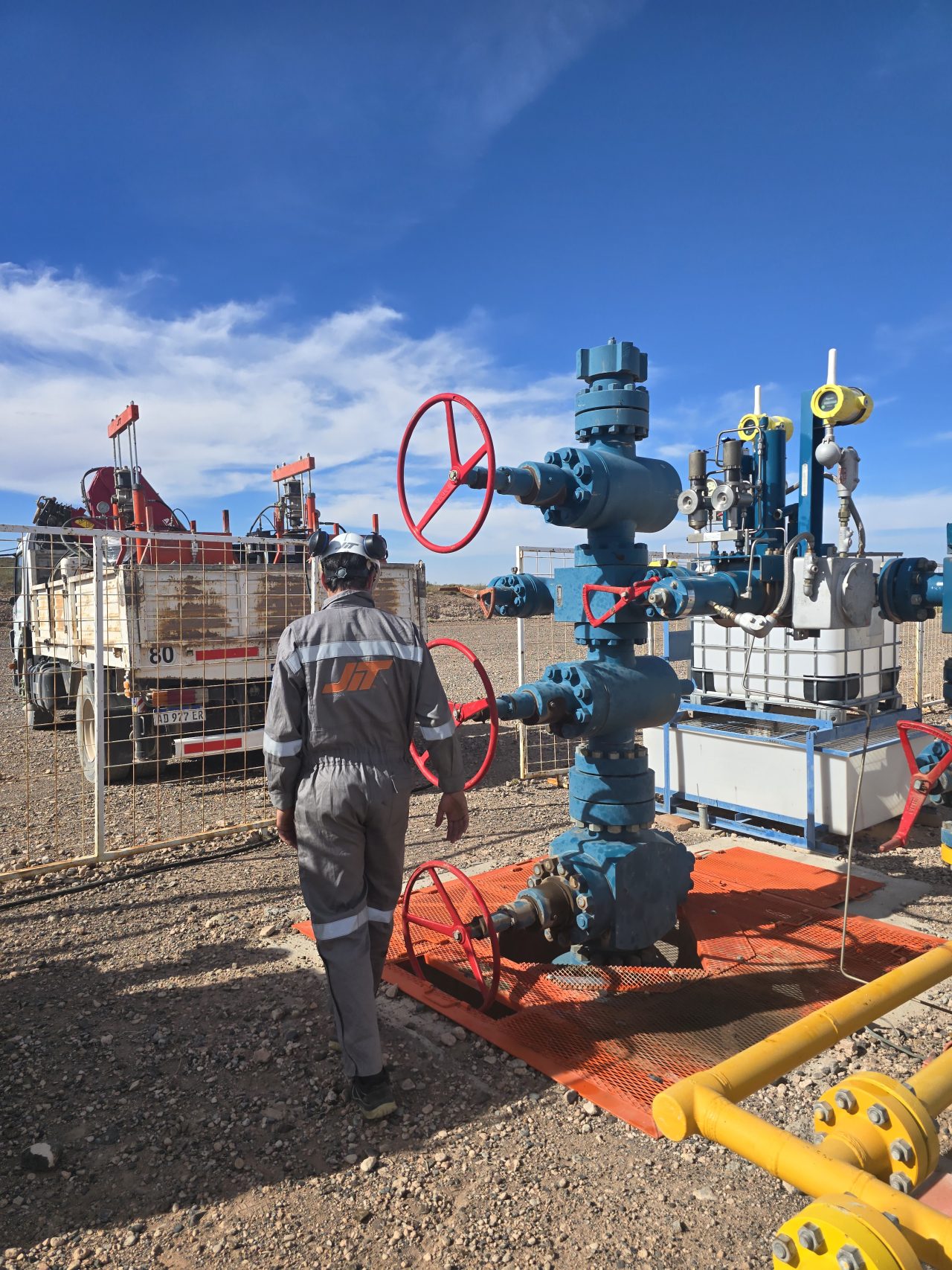

• Ideal for the lubrication control of gas distribution valves and Christmas trees.
• Ideal equipment for greasing crews.
• Printed report that confirms the start of greasing, greasing time, operator ID, greased valve ID, supplied grease quantity, maximum pressure for charts or work orders, guaranteeing the work performed.
• Incorporation of data: such as user, ID, valve model through its HMI touchscreen.
• Generated information can be extracted via USB connectors or Ethernet cable.

The high-pressure hydro-pneumatic grease pumps allow the injection of viscous greases, packing, lubricants and sealants, etc. for the maintenance of valves in gas, oil, chemical and other fluid pipelines distribution.

This unit is designed to supply this type of grease quickly and effortlessly, reaching 10,000 psi of pressure. lt is contained within a metallic structure that includes every equipment component.

Hydropneumatic engine
Ratio: 90:1
lnlet pressure: 8 [bar]
Air consumption: 200 [I/min]
Oil flow: 1000 [cm3 /min]
Noise: 79 [dB]

Grease recipient
Cylinder built in 6mm wide burnished steel which contains the grease pisten.

High pressure hose
Built with a thermoplastic elastomer tube reinforced with two layers of aramid fiber and a steel wire mesh. Covered in PU.
Working pressure: 700 bar. Hose length 1.5 meters

Pneumatic cap for the piston return
lt allows the grease piston to return to the initial position in the cylinder. This simplifies the work for the next stick load.
Max Pressure lnlet: 8 [bar] – 116 [psi]

ACCESSORIES
Swivel joint on the pump output
Quick coupling
Manometer 15.000 [psi]
Giant Buttonhead Coupler 22 [mm]

APPLICATION
Designed for one grease “J” size stick- 35 mm (1 3/s”) x 215 mm (8 ½”) Diameter x Length.
The cylinder can also be filled with viscous greases of NLGI grades 1, 2, 3 up to 6.

The cylinder was designed to contain 3 sticks in type J format – 35 mm (1 ⅜’’) x 215 mm (8 ½’’) Diam x Length each.

Another option is offered to contain 1 cylinder with 3 sticks or 2 cylinders with 6 sticks in their entirety, which allows you to avoid loss of time and more continuous use of it.

Also, you can order with a remote control to get away the user of the red zone.

You can also complete the cylinder with NLGI grade 1,2,3, 4 to 6 viscous greases.

Our portable oil vacuum consists of a double diaphragm pneumatic pump and an FRL, mounted on a portable chassis.

Double diaphragm pneumatic pumps are recognized as the most flexible pumps for handling aggressive liquids with variable pressure and flow rates. The range of applications is practically limitless.

Characteristics

Flow rate: 20 l/min – 35 l/min – 55 l/min
Pump material: polypropylene
Membrane material NBR+ PTFE
Compatible fluids: oils – used oils – diesel
Ratio 1:1
Air inlet connection: 6mm
Noise 65 dB
Maximum Air Inlet Pressure: 8 bar
Viscosity 12000 cps

Accessories

Portable chassis
2-meter suction hose
10-meter transfer hose
Lubricator regulator filter

Functionality

The equipment is designed to suction oil from PCP well pumps

Alternatives

Double diaphragm pump
P 1 :1 35 LPM 1/2 BSP.
P 1 :1 55 LPM 1/2 BSP.
