MANUAL GREASE PUMPS

Portable and versatile greaser for easy handling, transport, and storage of grease. Tools designed with the user in mind, without sharp edges, with low impact on joints and muscles in everyday use.

Manufactured in steel, with a drawn steel head, and bucket finished with oven-baked paint, orange color for easy identification in the workplace.

Grease press throughout the line, ensuring optimal use of grease under any condition. Ideal for lubricating components of agricultural and industrial machinery, automobiles, trucks on the road, repair shops, and maintenance.

FEATURES

• Grease Pressure = 200 bar.
• Grease Pressure at sealing with medium force.
• Grease Flow = 4 gr. per lever actuation. Allows dosing by counting the number of levers pressed.

PORTABLE GREASE GUN 1 KG

This is our most portable greaser, with a metallic body with non-slip knurling. Its welded bottom to the greaser body prevents lubricant spills, thus achieving work under better cleaning and saving conditions. They come with an applicator tube of 150 mm in length and an application nozzle with jaws (hydraulic) or support (zerk).

FEATURES

• Grease Pressure = 150 bar
• Grease Pressure at sealing with medium force – 150 bar
• Grease Flow = 2.5 gr. per lever actuation. Allows dosing by counting the number of levers pressed

PNEUMATIC PULSE GREASE PUMPS

4g per pulse

Portable and versatile greaser for grease application with a patented ergonomic design. Manufactured in steel, with an aluminum head, and brass valves. Bucket finished with oven-baked paint and grease press throughout the line, ensuring optimal use of grease under any condition, even with the most viscous greases, achieving a considerable advantage in time and effort compared to the manual line. Includes a 1.5m High-Pressure hose and a grease applicator nozzle with gripping jaws.

Ideal for lubricating components of agricultural and industrial machinery, automobiles, trucks on the road, repair shops, and maintenance. Its unique patented system allows dosing the grease, being able to precisely regulate the amount of lubricant applied to bearings and joints, avoiding waste of grease.

UNIQUE for the great portability and versatility provided by its 3 and 5 kg storage presentations.

UNIQUE for its high performance. One pulse (air shot) equals 4g of applied grease.

UNIQUE for being applicable to the air circuits of trucks, harvesters, and sprayers, which favors energy saving and allows better use of grease, avoiding waste. In this way, lubrication tasks can be performed directly at the workplace.

UNIQUE for its patented ergonomic design.

FEATURES

• Pressure Ratio (grease): 45:1
• Operating Pressure (air): 3 to 8 bar (45 to 110 psi).
• Grease Flow: 4 grams per pulse
• Air Inlet Connection: 1/4 bspt (gas)
• Grease Outlet Connection: 1/8 bspt (gas)

CONTINUOUS FLOW PNEUMATIC GREASE PUMPS

50:1 – 650 g/min

For grease distribution and application, with a double-acting cylinder and continuous grease flow; with a head entirely made of alloyed aluminum and a maintenance-free inner ball joint system.

UNIQUE in portability features, given its ergonomic system, allowing all kinds of movements within workshops and on different types of surfaces.

APPLICABLE to all types of machinery and vehicles, given its high-pressure, robustness, and portability features.

FEATURES

• Pressure Ratio (grease): 50:1
• Operating Pressure (air): 3 to 8 bar (45 to 110 psi)
• Grease Flow: 650 grams per minute
• Air Inlet Connection: 1/4 bspt (gas)
• Grease Outlet Connection: 1/8 bspt (gas)

ACCESSORIES

• High-pressure steel mesh SAE R2 hose (2 meters).
• Pneumatic grease gun with swivel connection type “Z” and grease press with synthetic rubber bushing and edges.

CONTINUOUS FLOW PNEUMATIC GREASE PUMPS

60:1 – 1600 g/min

Our Italian-designed pneumatic greaser allows for the handling of heavier mineral greases due to its higher pressure ratio (60:1).

Machined from an aluminum bar, its system allows for the supply of a larger quantity of grease per minute (1600 g/min).

Specially designed for centralized distribution systems, where a greater quantity of grease and higher pressure over both short and long distances are required.

Additionally, its features enable it to work in the most hostile environments, performing greasing at temperatures below average.

FEATURES

• Pressure Ratio (grease): 60:1
• Operating Pressure (air): 3 to 8 bar (45 to 110 psi)
• Grease Flow: 1600 grams per minute
• Air Inlet Connection: 1/4 BSPT (gas)
• Grease Outlet Connection: 1/8 BSPT (gas)

ACCESSORIES

• High-pressure steel mesh SAE R2 hose (2 meters)
• Grease gun with swivel connection type “Z” and grease press with synthetic rubber bushing and edges

Our high-pressure greaser line allows for the operation of heavy greases and sealants under adverse weather conditions with working pressures reaching up to 15,000 PSI – 1000 bar.

They are ideal for valve maintenance in the gas, oil, mining industries, etc.

PNEUMATIC GREASE PUMPS

Models

Model 5Q: Equipment designed for 5-quart aluminum containers. Equivalent to 10 pounds or 4.5 kg of grease – With a pneumatic grease press system. Equipment weight (without grease): 29.9 kg

Model 5G: Equipment designed for 5-gallon containers. Equivalent to 18 kg grease buckets – With a pneumatic grease press system. Equipment weight (without grease): 36.5 kg

Model 60G: Equipment designed for 60-gallon containers. Equivalent to 200kg grease drums – With follower grease press. Equipment weight (without grease): 20 kg

HIGH-PRESSURE HYDROPNEUMATIC GREASE PUMPS

This unit is designed to supply type J greases at high speed and with the least possible effort, reaching up to 10,000 psi pressure. Housed in a metal structure containing each of the equipment components, making it versatile and portable.

Models

• 1 stick
• 3 sticks
• 6 sticks

TRANSFER PUMP

Manufactured in steel, with aluminum heads, fully painted in gray, with an O-ring No. 2-223 in its piston, supplied with the suction tube for 200-liter drums.

Its redesigned curved spout minimizes dripping after use, and its ergonomic plastic handle, without sharp edges, insulates from cold and heat.

The height of its metal body allows for the comfortable filling of 1-liter plastic bottles and 4-liter jerry cans for the fractionation of oils in lubricant centers.

Smooth and quiet operation allows for effective control over the flow of lubricant or fuel.

It can handle work with thinner, taking care to lubricate the rod and other exposed metal parts with oil.

FEATURES

• Oil flow rate: 200 CC per lever action

OIL SYRINGE

Metal syringe with both suction and dispensing functions, ideal for filling and draining oil in gearboxes and differentials.

The container body is constructed without a screwable bottom, in a single piece, preventing leaks at its rear.

It features an anti-slip knurled grip to prevent slipping with wet and/or oily hands.

FEATURES

Capacity: 500 cc

ACCESSORIES

Curved spout for filling and draining oil in gearboxes and differentials

MANUAL OIL PUMP

Smooth and quiet operation allows for effective control over the flow of lubricant.

Tool without sharp edges, with a low impact on joints and muscles during everyday use.

Manufactured in steel, with a clear PVC hose that allows for the observation of the correct lubricating oil flow and quick ¼ bspt coupling.

Ideal for use in lubricant centers and maintenance workshops for filling speed boxes and transmissions of all types of vehicles.

It distributes and applies grease, with a double-acting cylinder and continuous grease flow; with a head made entirely of alloy aluminum and a maintenance-free internal ball joint.

FEATURES

• Oil flow rate: 200 cc per lever action

ACCESSORIES

Clear PVC hose and quick 1/4 bspt coupling

PNEUMATIC OIL PUMP

Our Italian technology pneumatic pump allows for the distribution of low and medium viscosity oil (SAE 15/130), similar fluids, and antifreezes over short to medium distances.

The combination of the cart for moving 20-liter buckets with the pneumatic pump allows for the use of oil without performing any type of transfer, maintaining its hygiene.

FEATURES

• Oil Pressure Ratio: 3:1
• Working Pressure (air): 3 to 8 kg/cm2 (45 to 110 psi)
• Oil Flow Rate: 25 liters per minute
• Air Inlet Connection: 1/4 BSPT (gas)
• Oil Outlet Connection: 1/2 BSPT (gas)

ACCESSORIES

• High-pressure hose of 1/2″ and 2 meters in length

GUNS

• With digital flow meter, dripless valve, and 90º rigid extension
• With dripless valve and 90º rigid extension

Note: The effective flow rate of a pump varies depending on the combination of different factors (Feed pressure, viscosity, fluid temperature, hose length, gun)

PNEUMATIC OIL DISPENSER

A portable unit designed for supplying oil to different workstations (service stations, dealerships, mechanic shops, etc.).

These units, when filled with oil, are pressurized with compressed air through the inflation valve up to 6 kg/cm2, allowing for a flow rate of 6 liters/minute (at the aforementioned pressure).

• Capacity: 60 liters
• Safety valve calibrated at 8 kg/cm2
• 2-meter hose
• Liter-counting gun or dripless gun
• Oil level indicator
• Pressure gauge
• Polyester powder coating
• 2 fixed wheels of 300 mm in diameter with roller
• 1 swivel wheel of 100 mm

OIL COLLECTORS AND VACUUM EXTRACTORS FOR WASTE OIL

FEATURES

Vehicle used oil suction equipment with a sight glass and collection tray.

This product allows for the collection of used oil in two ways:

In the first method, it uses an extraction probe that is inserted into the vehicle through the oil level dipstick. This extraction should be done with the oil at a temperature between 70ºC and 80ºC.

The vacuum is achieved by a pneumatic pump connected to the compressed air line.

The 10-liter sight glass allows the user to see the quantity and condition of the extracted oil with each use.

For the second option, an adjustable-height collection tray is used, which allows for the collection of used oil by removing the oil pan plug, positioning the equipment under the vehicle.

In both systems, the tank is emptied by pressurizing it, connecting the equipment to the compressed air line through the inflation valves and air regulator.

ACCESSORIES

• Tank capacity: 60 liters
• Collection tray – capacity: 19 liters
• Adjustable height up to 1.72m
• Sight glass with level indicator
• Oil level indicator
• Pressure gauge
• Vacuum gauge
• Safety valve with pull tab
• 2 fixed wheels with a diameter of 300mm with roller
• 1 swivel wheel with a diameter of 100mm
• Polyester powder coating
• Probe kit

FLOOR OIL COLLECTORS

A mobile unit suitable for recovering oil using a pneumatic oil pump.

Equipped with:

• 3:1 pneumatic emptying pump
• Grate placed at the base of the container
• Baffle inside
• 2 swivel wheels
• 2 fixed wheels

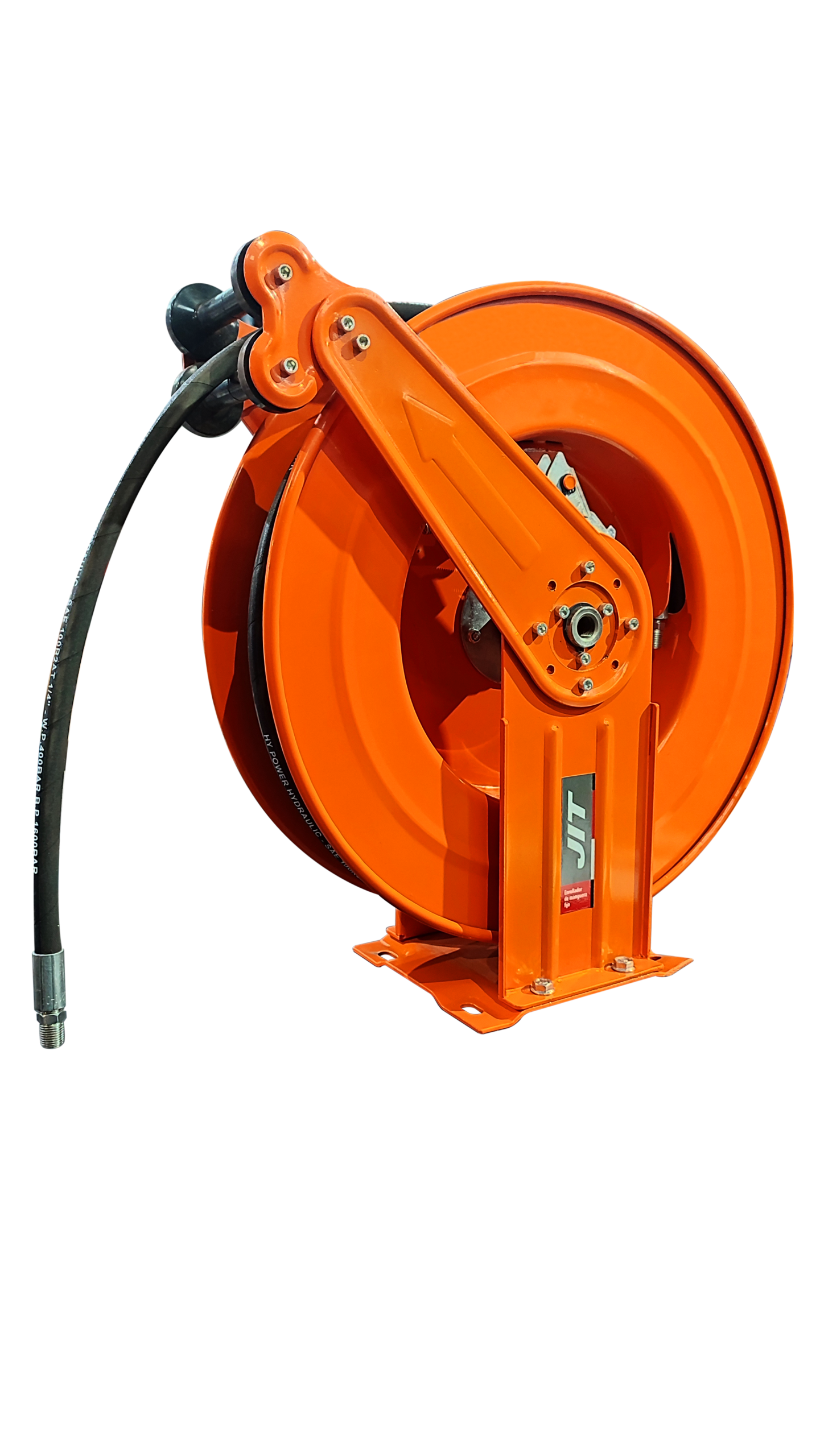

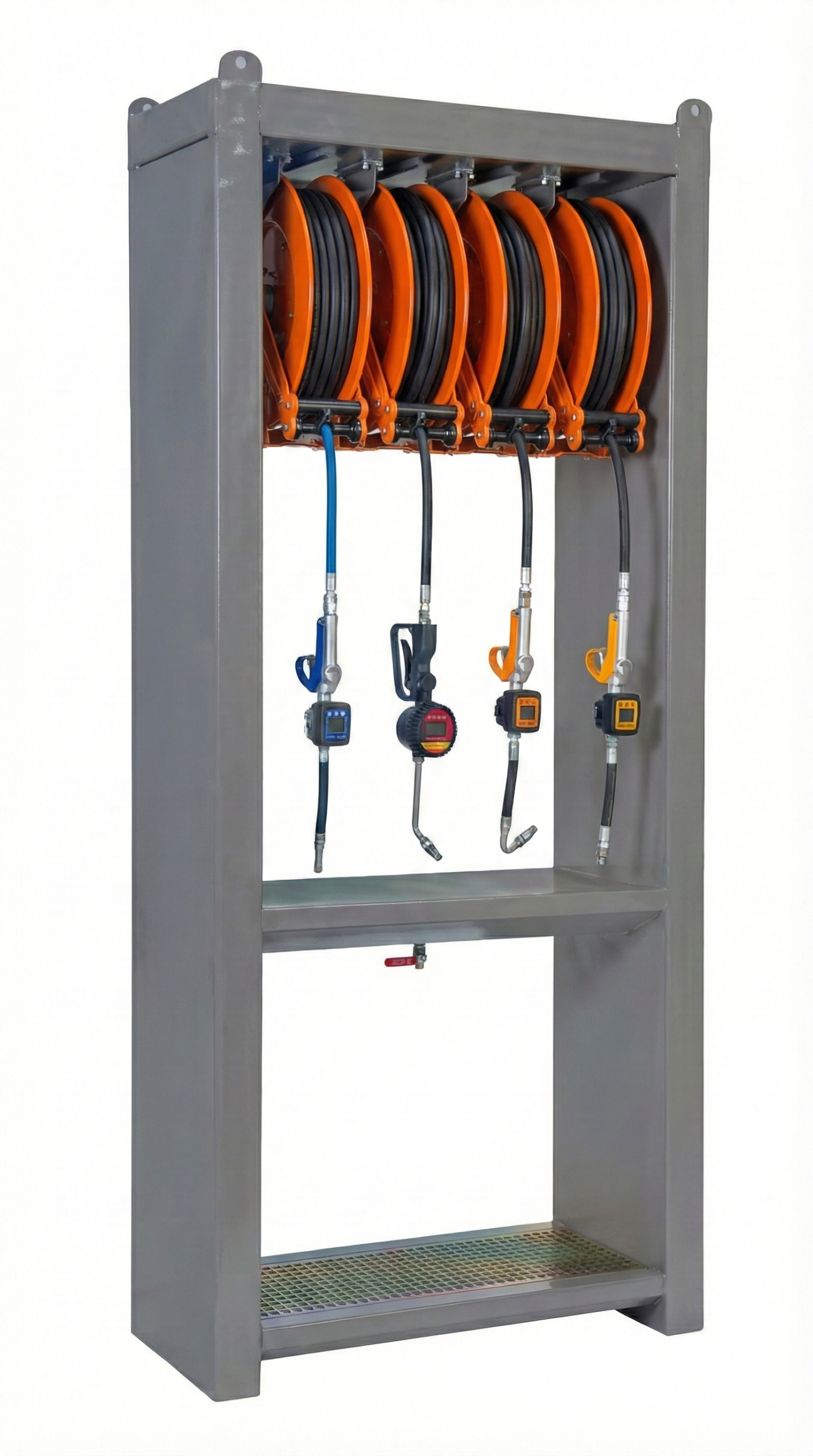

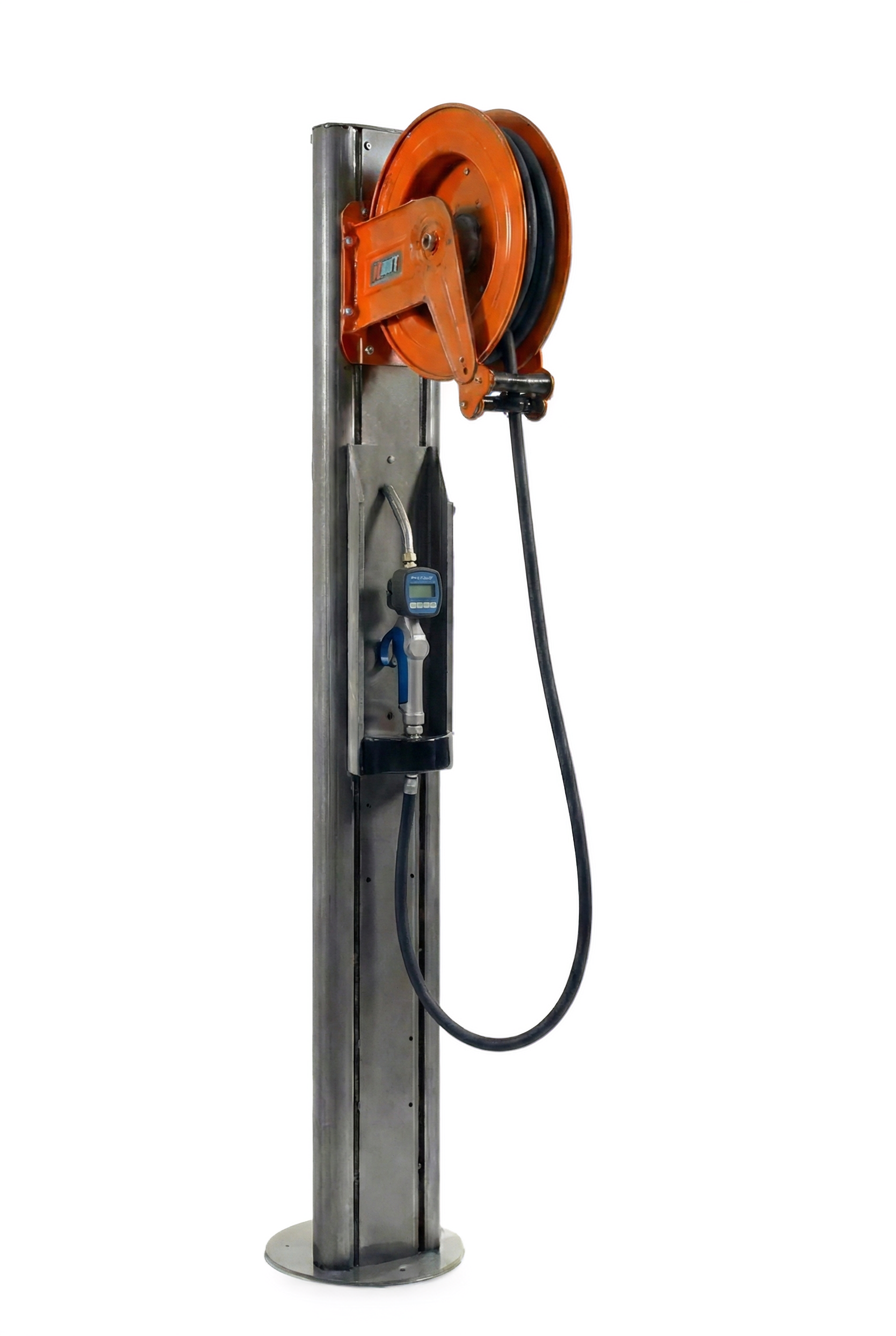

AUTOMATIC ENCLOSED HOSE REELS

Ideal for organizing the supply of different types of fluids and meeting needs with efficiency and convenience.

The enclosure protects the hose with the highest hygiene standards.

The hose reel has the largest capacity on the market (18 meters), allowing for reaching great distances, optimizing spaces, and arranging equipment in workshops and lubrication centers.

SUPPORTED FLUIDS

• Oil
• Grease
• Air
• Water

200 LITERS DRUM HANDLING TROLLEY

Sturdy cart made entirely of steel, ideal for handling oil and solvent drums in lubrication centers.

Its upper claw clamping system allows for loading and unloading the drum without the need for chains or lower hooks, maintaining it at a 45º tilt, supported by its easily gliding wheels.

With just one operator, simply lock and step, and the drum is ready to be transported smoothly, facilitating movement through narrower or difficult-to-access spaces.

FEATURES

Clamping system from the upper edge of the drum, suitable for handling.

MOBILE KIT FOR DRUMS

Our Mobile Kit optimizes the movement of 200 kg drums and, combined with a pneumatic pumping system, allows for the supply of various fluids.

An essential piece of equipment for mechanical workshops, industries, and service stations.

Its design allows it to work in conjunction with our drum transport cart. It is used to manipulate the drum and load it using only one person for the process.

Request your Mobile Kit based on your needs

STANDARD KIT

• Pneumatic Head (Continuous Flow Pneumatic Greaser/Pneumatic Oil Pump)
• Cased Reel
• Gun

KIT FOR 20 LITER BUCKETS

Oil Bucket Holder

Allows for the use of a 20-liter oil bucket with a Manual or Pneumatic Pump. Manual o  Pneumatics

Base support with wheels for bucket movement

Allows for the movement of buckets, ideal for use with our entire line of Pneumatic Greasers. Pneumatic Greasers

AIR MEASURE-INFLATE GUN

The measure-inflate gun allows for quick inflation and also enables checking the amount of pressure provided to the tire.

GRAVITY FEED PAINT GUN

Professional gravity feed paint gun.

Its lightweight design allows for precise and defined finishes.

Features

• Wide fan air nozzle.
• 500 cm3 reservoir
• Adjustable fluid and fan knobs
• Stainless steel fluid tip and needle with Ø 1.5 mm

DEGASSING – CARBURETOR GUN

Ergonomic gun for blowing using the air line from workbenches, molds, devices, engines, etc.

Long nozzle of 10 cm.

SPRAY GUN

Spray gun with a 750 cm3 reservoir cup

Used for:

• Engine cleaning
• Fluid spraying (cleaning and/or spraying)
• Suitable for use with Diesel, Kerosene, Light oils, gas, etc.

SPIRAL HOSE

10-meter spiral hose with coupling.
